RADHE INDUSTRIES established in 2020. Quality assurance is offered by us on the whole array of products.

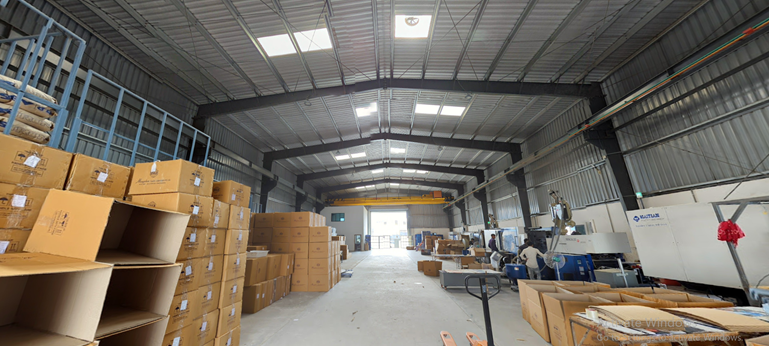

Having 10000 square feet plant area. And also having 5000 square feet future expansion area.

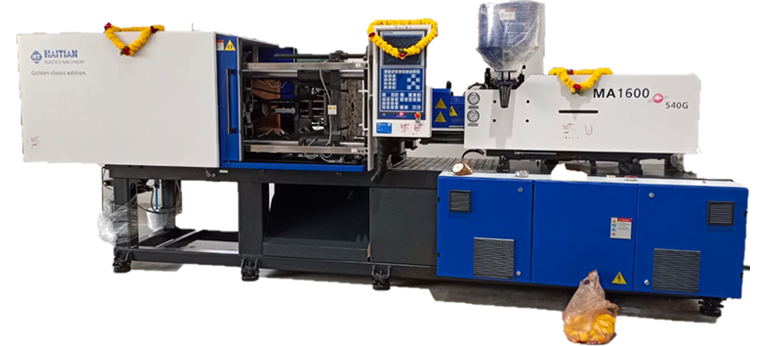

We have installed latest and advanced injection moulding machines capacity from 160 Tones to 450 Tones.
| SPECIFICATION: | MACHINE : 1 | MACHINE : 2 | MACHINE : 3 | MACHINE : 4 | |
|---|---|---|---|---|---|
| BRAND NAME | HAITIAN | HAITIAN | HAITIAN | HAITIAN | |
| INJECTION UNIT | MA 1600/540G | MA 2500/1000G | MA 3600/2250G | MA 4500/2900G | |
| SCREW DIAMETER | mm | 45 | 55 | 70 | 90 |
| SCREW L/D RATION | L/D | 20 | 20 | 20 | 17.5 |
| SHORT SIZE (THEORETICAL) | cm3 | 320 | 601 | 1239 | 2355 |
| NJECTION WEIGHT (PS) | g | 291 | 547 | 1127 | 2143 |
| INJECTION RATE | g/s | 140 | 210 | 323 | 604 |
| INJECTION PRESSURE | Mpa | 169 | 169 | 180 | 123 |
| PLASTICIZING CAPACITY (PS) | g/s | 22.2 | 28.5 | 44.9 | 71.8 |
| SCREW SPEED | rpm | 0 ~ 235 | 0 ~ 195 | 0 ~ 185 | 0 ~ 170 |
| CLAMPING UNIT | |||||
| CLAMP TONNAGE | KN | 1600 | 2500 | 3600 | 4500 |
| TOGGLE STROKE | mm | 420 | 540 | 660 | 740 |
| SPACE BETWEEN TIE BARS | mm | 455 X 455 | 570 X 570 | 710 X 710 | 780 X 780 |
| MAX. MOLD HEIGHT | mm | 500 | 570 | 710 | 780 |
| MIN. MOLD HEIGHT | mm | 180 | 220 | 250 | 330 |
| EJECTOR STROKE | mm | 140 | 150 | 160 | 200 |
| EJECTOR TONNAGE | KN | 33 | 62 | 110 | 110 |
| OTHERS | |||||
| MAX. PUMP PRESSURE | Mpa | 16 | 16 | 16 | 16 |
| PUMP. MOTOR POWER | Kw | 15 | 22 | 37 | 45 |
| HEATER POWER | Kw | 11.55 | 17.75 | 30.65 | 37.65 |
| MACHINE DIMENSION (LXWXH) | m | 5.17 X 1.33 X 2.05 | 6.16 X 1.52 X 2.2 | 7.5 X 1.88 X 2.6 | 8.1 X 2.05 X 2.7 |
| MACHINE WEIGHT | t | 4.9 | 7.8 | 14.7 | 18.8 |
| HOPPER CAPACITY | Kg | 25 | 50 | 50 | 50 |
| OIL TANK CAPACITY | L | 235 | 355 | 640 | 820 |
